Atrio Private Collection Vijfgats badrandcombinatie

With this 5-hole bath combination from the Atrio Private Collection series by GROHE in stylish Brushed Warm Sunset, you can give your bathroom a personalised touch by choosing the control element that suits your aesthetic preferences!
Discover a refuge of grace and elegance with the Atrio Private Collection – the perfect symbiosis of timeless aesthetics, state-of-the-art technology and the highest quality standards, made in Germany. In addition to its delicate design, consisting of clear lines and rounded shapes, this exquisite GROHE SPA series is characterised by its wide range of combinable colours and materials, offering maximum individuality. The GROHE Atrio Private Collection 5-hole bath combination includes an elegantly curved bath spout with mousseur, a diverter for bath or shower, 2 button controls, a water-saving hand shower with a flow rate of 6.6 litres per minute and a long shower hose with a length of 2,000 mm. Thanks to the scratch-resistant PVD coating, the elegant Brushed Warm Sunset surface remains flawless and resistant for a long time. Customise your mixer tap with the inserts for button actuation – choose from 48462000 (White Attica Caesarstone) or 48463000 (Vanilla Noir Caesarstone). This bath combination is compatible with the GROHE base frame for installation under tiled surround (29037002). GROHE Atrio Private Collection – for a personal touch in the bathroom.
Belangrijkste kenmerken
- keramische binnenwerk 1/2", 90°
- GROHE Long-Life finish
- bestaande uit:
- voorgemonteerde baduitloop
- knoppen met inleg, kan worden gecombineerd met 48 462 000 of 48 463 000
- baduitloop met mousseur en omstelling uitloop/douche
- handdouche Rainshower Aqua Stick 6,5 l/min
- doucheslang 2000 mm
- flexibele aansluitslangen
- aansluiting voor doucheslang
- terugstroombeveiliging
- kan gecombineerd worden met 29 037 002 (optioneel)
Technische productinformatie
CAD data

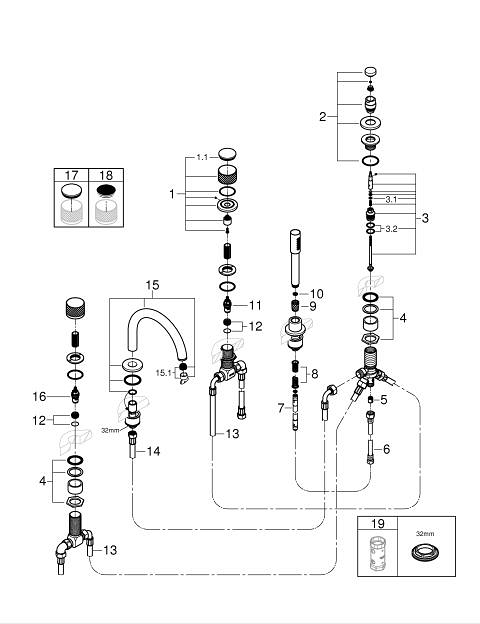

Pos.-nr. | Prod. beschrijving | Bestelnummer |
---|---|---|
* Optionele accessoires | ||
1 | afdekkap | 101348DL00 |
2 | Omstelknop | 48411DL0 |
3 | Omstelling bad/douche | 45443000 |
3.1 | O-Ring Ø6 x Ø2 | 0128300M |
3.2 | O-Ring | 0120500M |
4 | Kraan montageset | 45444000 |
5 | Terugslagklep | 08565000 |
6 | Aansluitslang | 07300000 |
7 | Metalen doucheslang | 28146000 |
8 | Teruglooplveer | 00869000 |
9 | conische moer | 08864DL0 |
10 | Zeef | 0700200M |
11 | Keramisch bovendeel 3/4" | 45887000 |
12 | Ventielzitting 3/4" | 45345000 |
13 | Aansluitslang | 48019000 |
14 | Aansluitslang | 48018000 |
15 | uitloop | 101350DL00 |
15.1 | Mousseur | 13926000 |
16 | Keramisch bovendeel 3/4" | 45888000 |
17 | Inlegstukken gemaakt van White Attica Caesarstone materiaal | 48462000* |
18 | Inlegstukken gemaakt van Vanilla Noir Caesarstone materiaal | 48463000* |
19 | Sleutel voor bovenstuk ¾ | 19332000* |
